用途及特點：
該漆是由環氧酯漆與乳化春與春與石墨、碳化硅與礦物顏料經研磨而成，具有良好的附著力的干燥性，屬低阻防電暈漆，耐熱等級為B級，適用于高壓中型電機及大電機線圈槽部和端部的防電暈處理，使用時可不用補強材料，直接涂刷于線圈表面及鐵心槽內。

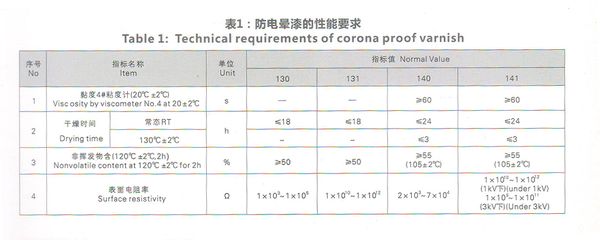

技術條件：
粘度(4號粘度杯，20℃±1℃)：≥60S; 附著力(劃圈法)：≤2級;
固體含量(105℃，2H)：≥55%; 表面電阻率：≥2×102-7×104Ω;
干燥時間(20℃±5℃)：≤20h;
防電暈漆性能特點和用途
Characteristics and Application of corona-proof varnish
特點和用途:耐熱等級B級。干燥性好。用于高壓電機線圈槽部表面防電暈覆蓋層。
標準: Q/XB1014-2011
Characteritics and Application: Temperature cassification is B. Good drying property. Used for corona proof coating of the slot of coils for high voltage motors.
Standard: Q/XB1014- -2011
131高電阻環氧防電暈漆 Epoxy varnish with high resistance and corona proof
特點和用途:耐熱等級B級。干燥性好。用于高壓電機線圈端部表面防電暈覆蓋層。
標準: Q/XB1015- -2011
Characteristics and Application: Temperature classification is B. Good drying property .Used for corona-proof coating of the end of coils for high voltage motors.
Standard: Q/XB1015- -2011
140改性聚酯低阻防電暈漆Modified polyester varnish, low- resistance and corona -proof
特點和用途:耐熱等級F級。附著力強，耐磨性好。可直接在線棒表面使用。適用于60KV和10.5KV級高壓電機線圈或線棒槽部的防暈。
標準: Q/XB1091-2011
Characteristics and Application: Temperature classification is F. High adhesion and good wear -resistance. Used for the surface of bars directly as well as for
corona-proof treatment of motors' coils and slot of bars which voltage are 6kv and 10.5kv.
Standard: Q/XB1091-2011
141改性聚酯高阻防電暈漆Modified polyester varnish with high resistance and corona proof
特點和用途:耐熱等級F級。附著力強，耐磨性好。可直接在線棒表面使用。適用于60KV和10.5KV級高壓電機線圈或線棒端部的防暈。
標準: Q/XB1091-2011
Characteristics and Application: Temperature lasificationis F. High adhesion and good wear resistance. Used for the surface of bars directly as well as for
corona-proof treatment of the end of motors' coils and end of bars which voltage are 6kv and 10.5kv.
Standard: Q/XB1091-2011
